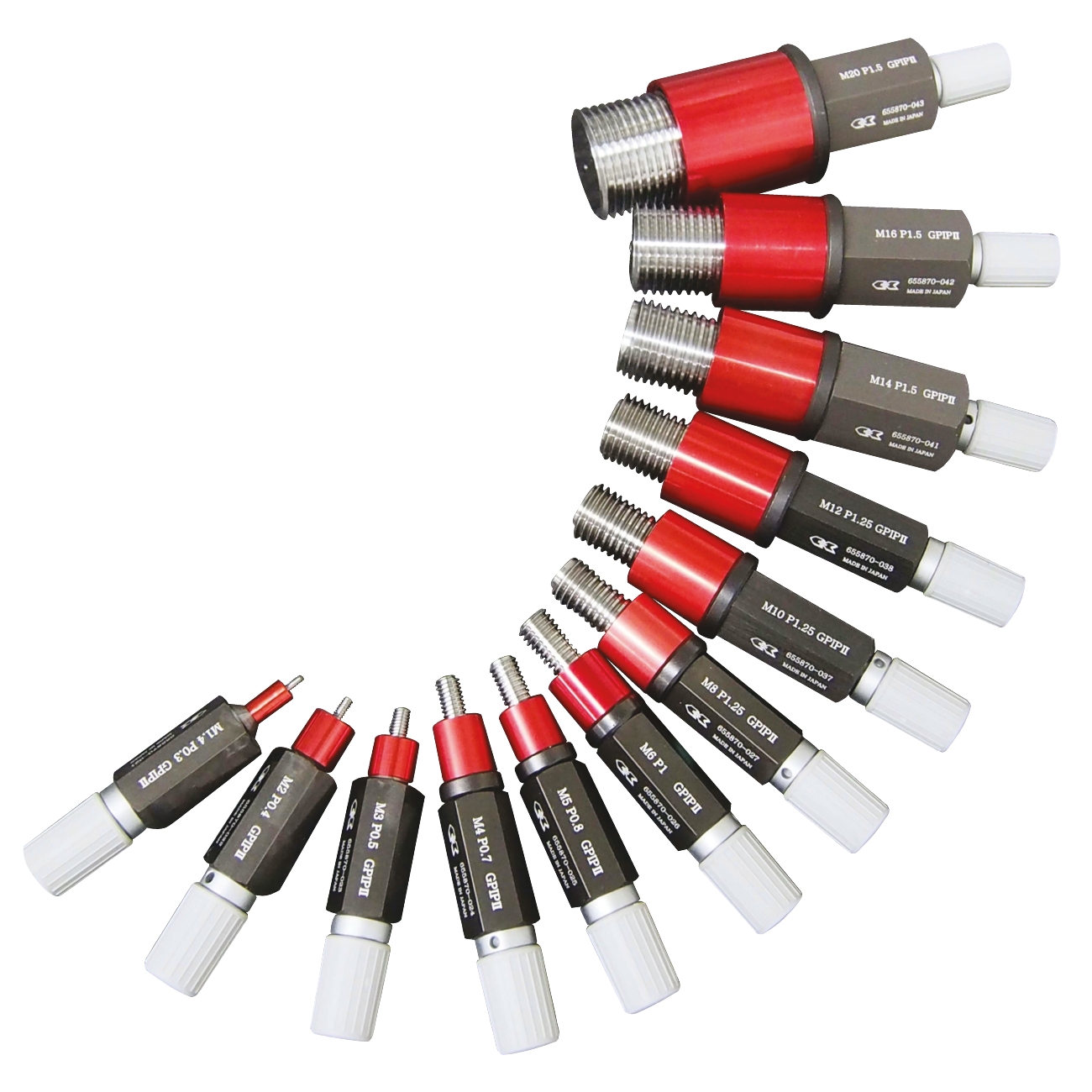

GO/NO GO threaded plug 2 in 1 ALPA FA305
Characteristics- Innovative tool that improves efficiency of the operation of control of the thread through test Go/No Go with one simple operation.
Errors of entrance is cancelled by the section driven PASS. Tollerance ISO 2 – 6H. Aluminium hexagonal removable handle, special steel 58 HRC. Control certificate included.A – FAIL: Go side insertion not possible
B – PASS: Stop at tapered section PASS
C – FAIL: Reaches the end face of the gauge stopper
Drawings
Variations
Code
Supplier Item
Thread
P Pitch mm
L1 mm
L2 mm
D mm
L3 mm
H mm
EAN13 Code
FA305M10X15
Supplier Item
SPO M10XP1,5 - 6H GPNP
Thread
M10
P Pitch mm
1,5
L1 mm
15
L2 mm
11
D mm
14
L3 mm
40
H mm
12
EAN13 Code
2000000171388
FA305M12X175
Supplier Item
SPO M12XP1,75 - 6H GPNP
Thread
M12
P Pitch mm
1,75
L1 mm
17,5
L2 mm
11,5
D mm
16
L3 mm
40
H mm
12
EAN13 Code
2000000171395
FA305M14X20
Supplier Item
SPO M14XP2,0 - 6H GPNP
Thread
M14
P Pitch mm
2,0
L1 mm
20
L2 mm
12
D mm
18
L3 mm
40
H mm
17
EAN13 Code
2000000171401
FA305M16X20
Supplier Item
SPO M16XP2,0 - 6H GPNP
Thread
M16
P Pitch mm
2,0
L1 mm
20
L2 mm
12
D mm
20
L3 mm
40
H mm
17
EAN13 Code
2000000171418
FA305M18X25
Supplier Item
SPO M18XP2,5 - 6H GPNP
Thread
M18
P Pitch mm
2,5
L1 mm
25
L2 mm
13
D mm
2,2
L3 mm
40
H mm
17
EAN13 Code
2000000171425
FA305M20X25
Supplier Item
SPO M20XP2,5 - 6H GPNP
Thread
M20
P Pitch mm
2,5
L1 mm
25
L2 mm
13
D mm
24
L3 mm
40
H mm
17
EAN13 Code
2000000171432
FA305M3X05
Supplier Item
SPO M3XP0,5 - 6H GPNP
Thread
M3
P Pitch mm
0,2
L1 mm
5
L2 mm
6
D mm
7
L3 mm
30
H mm
10
EAN13 Code
2000000171333
FA305M4X07
Supplier Item
SPO M4XP0,7 - 6H GPNP
Thread
M4
P Pitch mm
0,7
L1 mm
7
L2 mm
9
D mm
8
L3 mm
40
H mm
10
EAN13 Code
2000000171340
FA305M5X08
Supplier Item
SPO M5XP0,8 - 6H GPNP
Thread
M5
P Pitch mm
0,8
L1 mm
8
L2 mm
8
D mm
8
L3 mm
40
H mm
10
EAN13 Code
2000000171357
FA305M6X10
Supplier Item
SPO M6XP1,0 - 6H GPNP
Thread
M6
P Pitch mm
1,0
L1 mm
10
L2 mm
9
D mm
10
L3 mm
40
H mm
10
EAN13 Code
2000000171364
FA305M7X10
Supplier Item
SPO M7XP1,0 - 6H GPNP
Thread
M7
P Pitch mm
1,0
L1 mm
10
L2 mm
9
D mm
10
L3 mm
40
H mm
10
EAN13 Code
2000000171746
FA305M8X125
Supplier Item
SPO M8XP1,25 - 6H GPNP
Thread
M8
P Pitch mm
1,25
L1 mm
12,5
L2 mm
10
D mm
12
L3 mm
40
H mm
10
EAN13 Code
2000000171371
