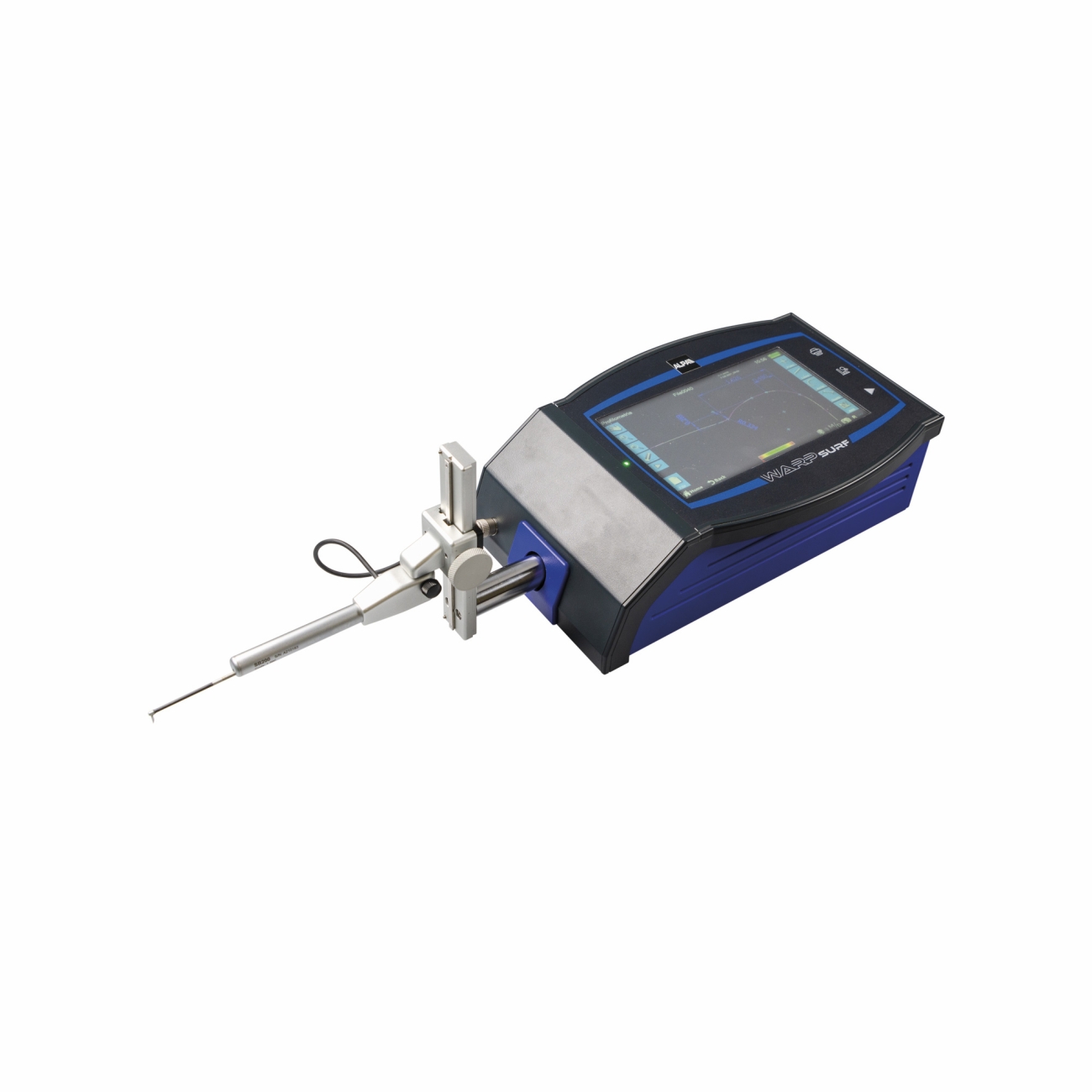

Portable roughness/surface profiler tester ALPA LA253

Category: Roughness testers and profilometers SKU: LA253

Characteristics

ALPA WRP is a revolutionary roughness/surface profile tester featured with a 7″ and 16 million colors touch screen. 90° inductive rotating probe. Chance to select up to 9 different languages. The internal 1GHz high-performance microprocessor let the instrument have always smooth and linear movements with quick data elaboration also with the most complex profiles. Extremely compact and handy, ALPA WRP can be easily used also for large details thanks to its integrated micrometric with a range of 110 mm. Automatic saving of last 6 measure. Interchangeable unit of measurement mm/inch.

Description

FEATURES
75 roughness parameters according to the international main standards (ISO 4287-1997, ISO 12085, DIN 4768, VDA2007) Ra, Rq, Rt, Rz, Rp, Rv, Rc, Rsk, Rku, RSm, RΔq, RΔa, Rmax, Rδc, Rmr, RPc, RLo, Rlr, Rzjis, RHSC, Pa, Pq, Pt, Pq, Pv, Pc, Psk, Pku, PSm, PΔq, Pδc, PPc, PLo, Plr, PHSC, Wa, Wq, Wt, Wz, Wp, Wv, Wc, Wsk, Wku, WSm, WΔq, Wδc, WPc, WLo, Wlr, WHSC, Rk, Rpk, Rvk, Mr1, Mr2, A1, A2, WDSm, WDc, WDt, R, AR, Rx, W, Aw, Wx, Wte, Rke, Rpke, Rvke, Mr1e, Mr2e, A1e, A2e.

Properties

Measuring range: ± 1500 µm (± 2500 µm su richiesta)
Resolution: 0,0001 µm (0,1 nm)
Cut-off: 0,08 - 0,25 - 0,8 - 2,5 - 8
N° cut-off selectable: 1 ÷ 20 (1 ÷ 6 for cut-off 8)
Stroke length: Fino a 60 mm
Memory: 1000 measurements (Pr)
Touch probe: Inductive and 90° rotatable
ON/OFF: 
Zero: 
Preset: 
Sleep: 

Download the manual

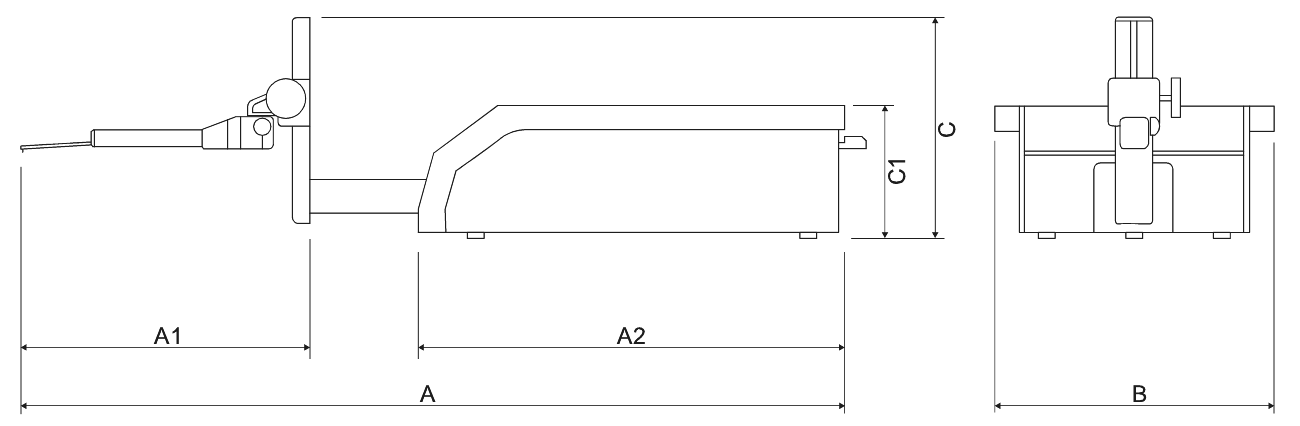

Drawings

Variations

Code

Supplier Item

Description



EAN13 Code

LA253KIPT

Supplier Item

6.302

Description

3mm Proﬁle tester set (specimen for calibration)



EAN13 Code

2000000168791

LA253RP

Supplier Item

1.105 + 1.733 + 6.304

Description

Portable roughness/surface profiler tester



3,65

EAN13 Code

2000000168630

LA253SB

Supplier Item

1.409

Description

Graphic Software



EAN13 Code

2000000168999

LA253SB1

Supplier Item

1.407

Description

Remote control software for LA253RP



EAN13 Code

2000000169002

LA253ST1

Supplier Item

Description

Stand for LA255TL90 and LA253RP



EAN13 Code

2000000169019
