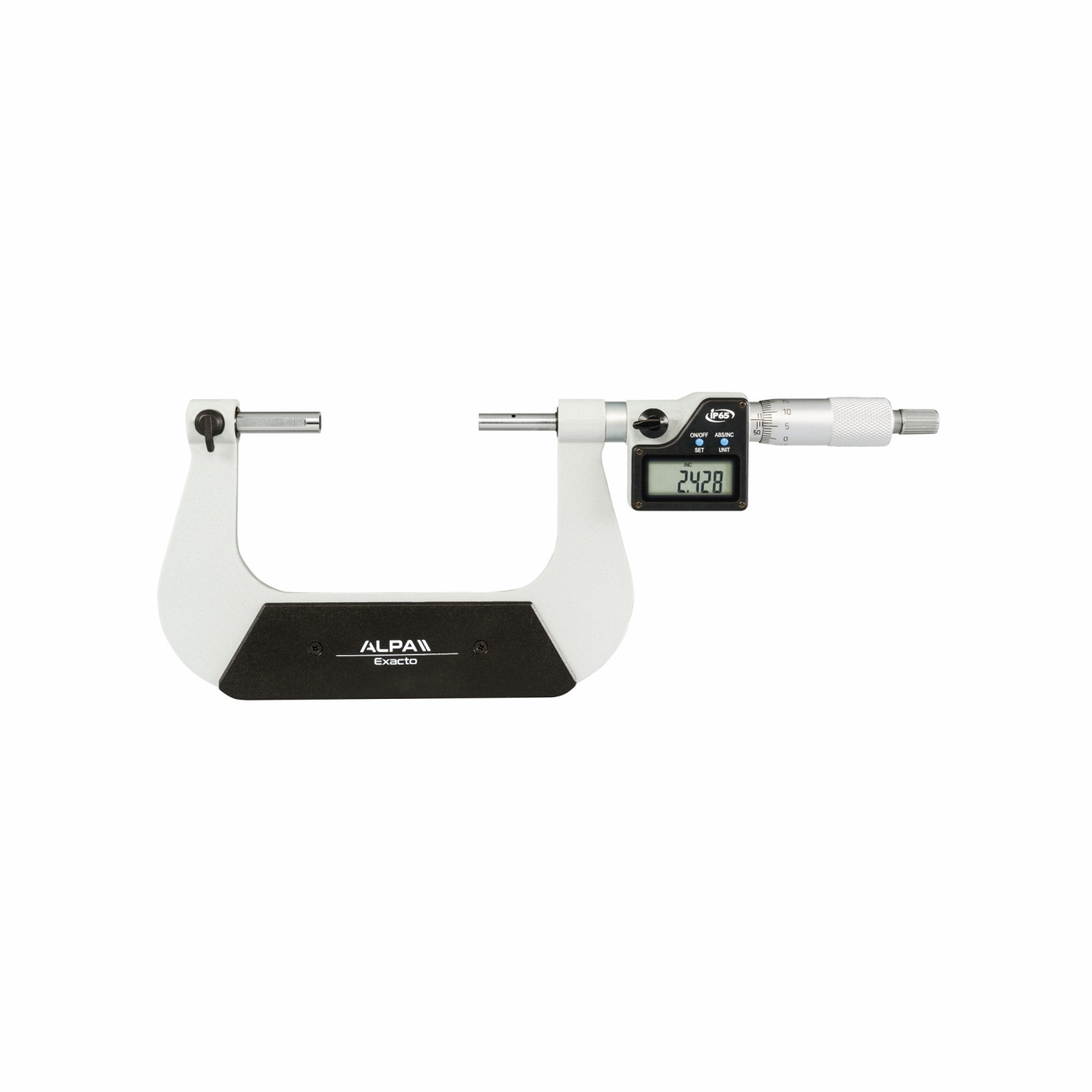

Digital micrometer with interchangeable ball contacts IP65 ALPA BA075
Characteristics- Resolution 0,001 mm.
Micrometer with ball-tipped measuring faces supplied separately (BC023) to measure straight and tapered external gears.

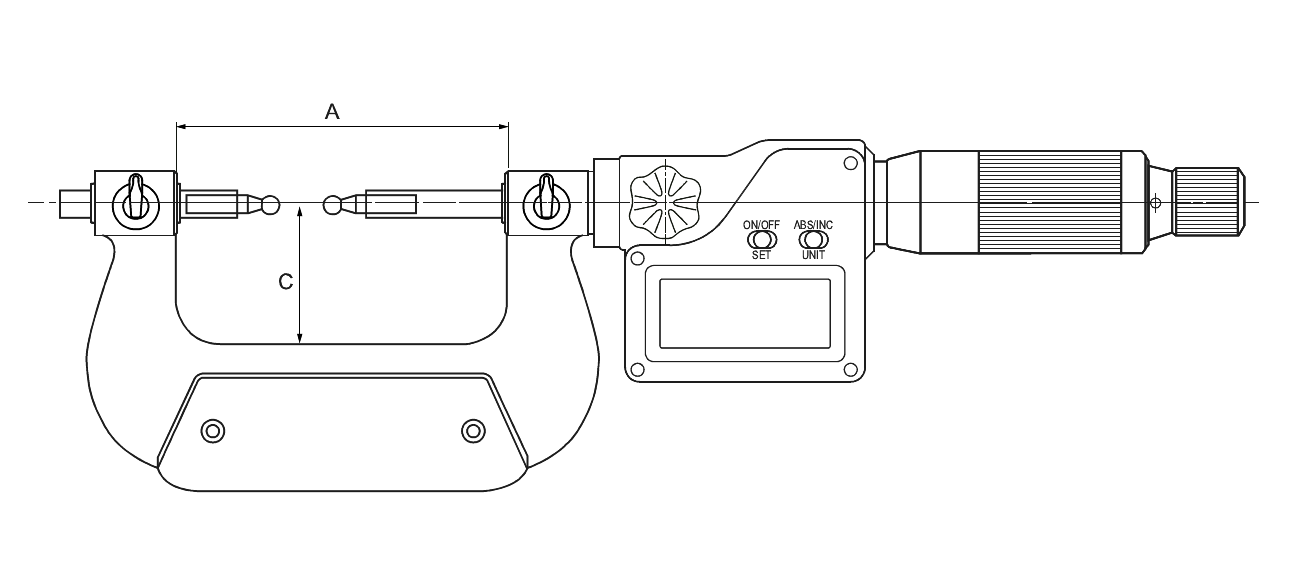

Drawings
Variations
Code
Range mm
Accuracy mm
B1 mm
C mm
BA07525
Range mm
0 ÷ 25
Accuracy mm
± 0,002
B1 mm
84
C mm
38
BA07550
Range mm
25 ÷ 50
Accuracy mm
± 0,002
B1 mm
109
C mm
50
BA07575
Range mm
50 ÷ 75
Accuracy mm
± 0,003
B1 mm
135
C mm
62
BA075100
Range mm
75 ÷ 100
Accuracy mm
± 0,003
B1 mm
160
C mm
70
BA075125
Range mm
100 ÷ 125
Accuracy mm
± 0,003
B1 mm
185
C mm
82
BA075150
Range mm
125 ÷ 150
Accuracy mm
± 0,003
B1 mm
234
C mm
95
