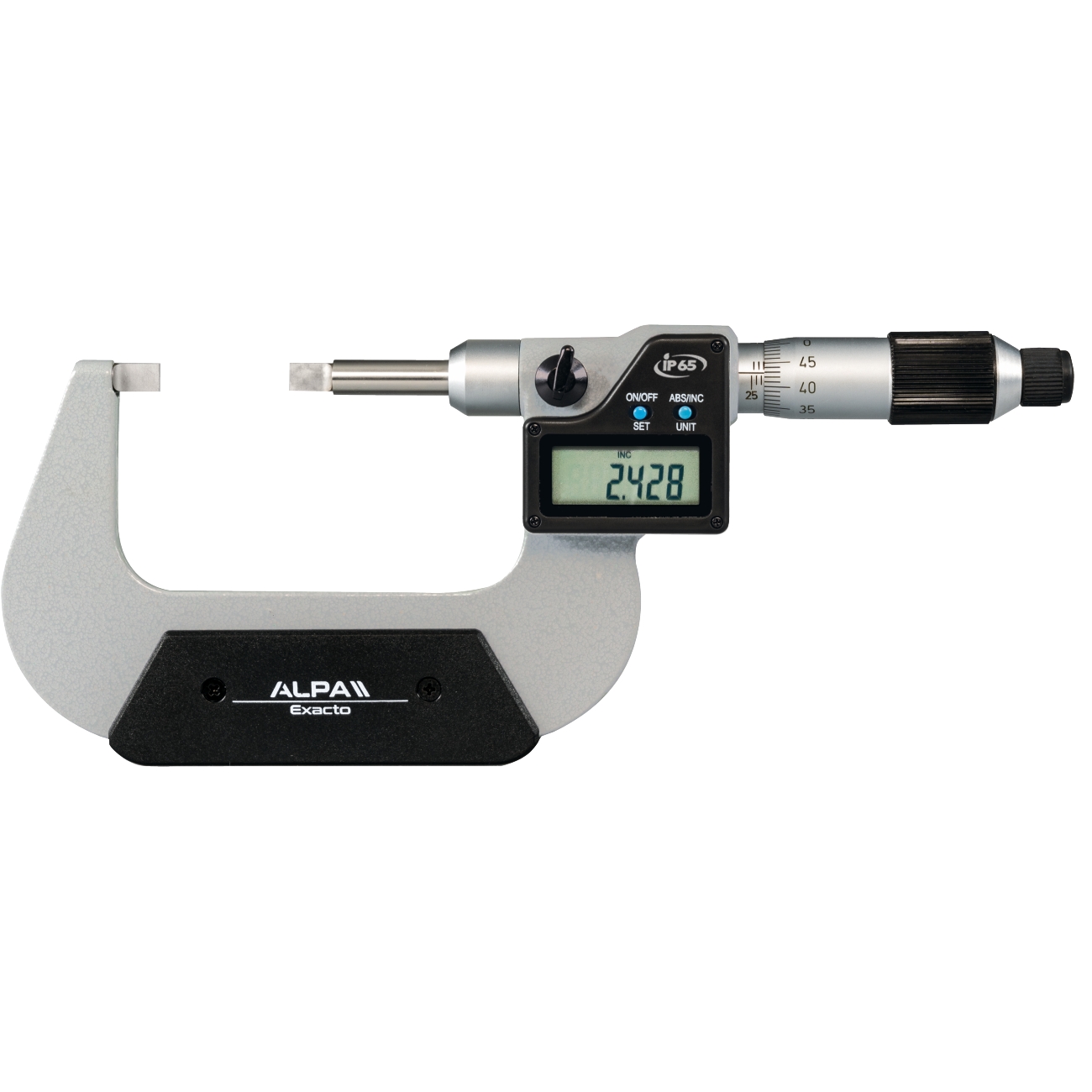

Digital micrometer for grooves IP65 ALPA BA060
Characteristics- Resolution 0,001 mm.
Blade measuring surfaces 0,75 x 6,50 mm, non-rotating spindle, painted frame, protected against dust, water resistant.

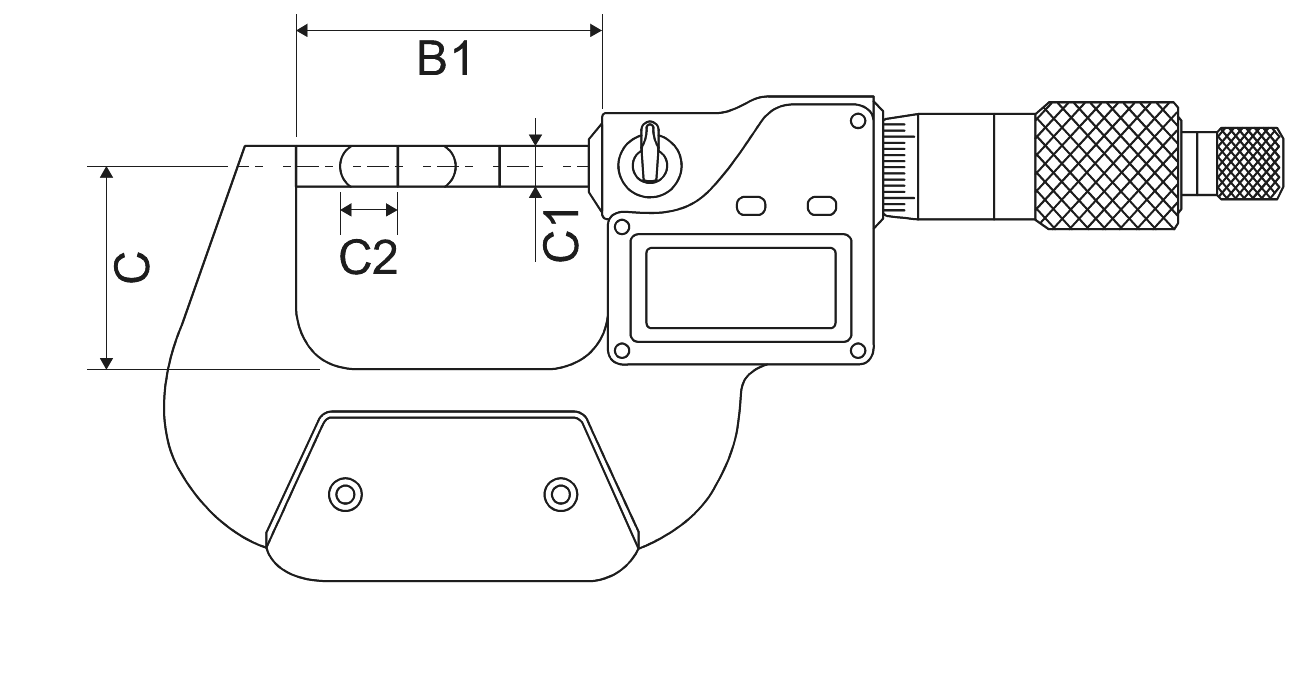

Drawings
Variations
Code
Range mm
Accuracy mm
B1 mm
C mm
Ø mm
BA06025
Range mm
0 ÷ 25
Accuracy mm
± 0,002
B1 mm
32
C mm
24
Ø mm
65
BA06050
Range mm
25 ÷ 50
Accuracy mm
± 0,002
B1 mm
57
C mm
32
Ø mm
65
BA06075
Range mm
50 ÷ 75
Accuracy mm
± 0,003
B1 mm
82
C mm
4,5
Ø mm
65
BA060100
Range mm
75 ÷ 100
Accuracy mm
± 0,003
B1 mm
107
C mm
57
Ø mm
65
