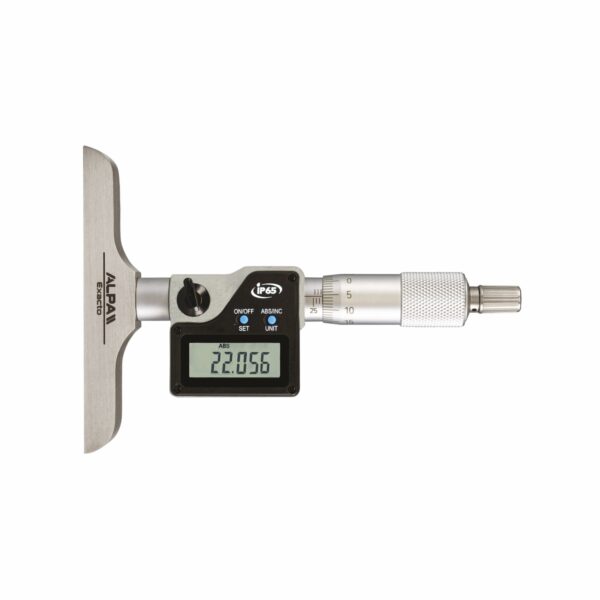

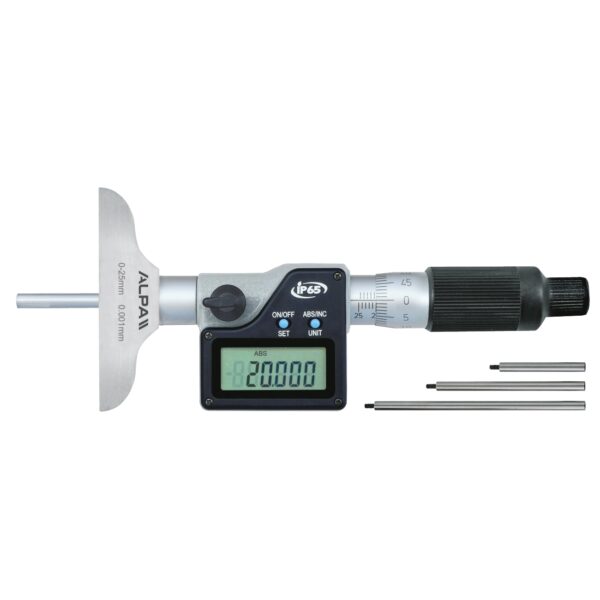

Digital depth micrometer IP65 ALPA BA090
Characteristics- Resolution 0,001 mm.
Protected against dust, water resistant. Sferical contact of the extension.

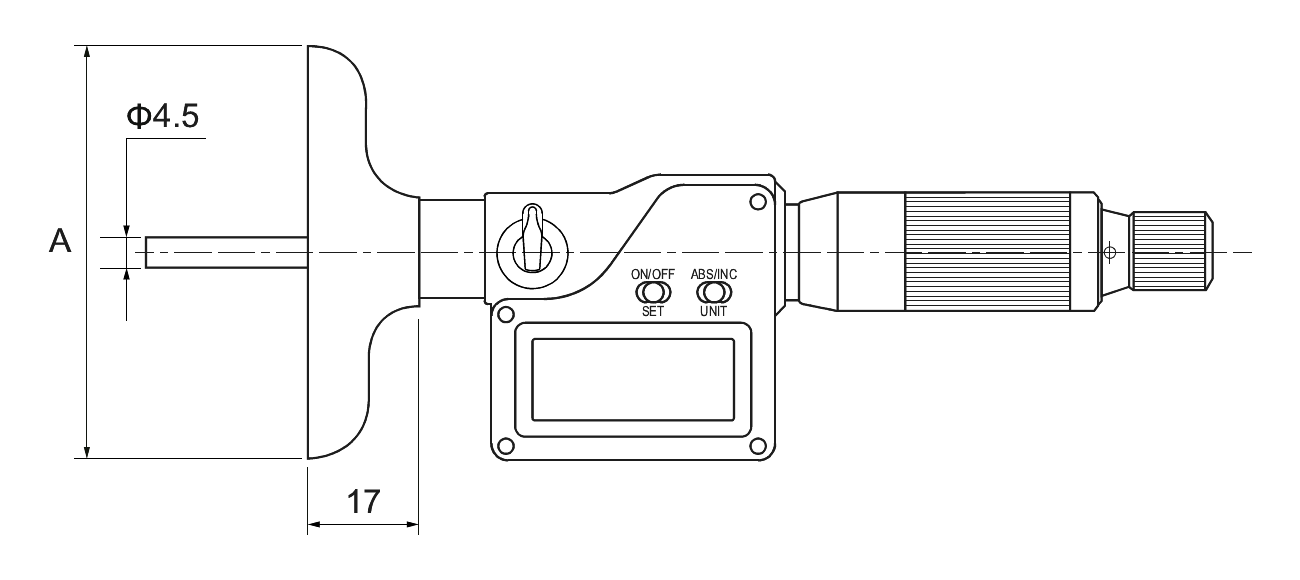

Drawings
Variations
Code
Range mm
Accuracy mm
Extensions pcs.
B mm
E mm
Ø mm
BA09025
Range mm
0 ÷ 25
Accuracy mm
± 0,003
Extensions pcs.
1 x 25mm
B mm
17
E mm
101,5
Ø mm
45
BA090100
Range mm
0 ÷ 100
Accuracy mm
± 0,003
Extensions pcs.
4 x 25mm
B mm
17
E mm
101,5
Ø mm
45
BA090200
Range mm
0 ÷ 200
Accuracy mm
± 0,003
Extensions pcs.
8 x 25mm
B mm
17
E mm
101,5
Ø mm
45
