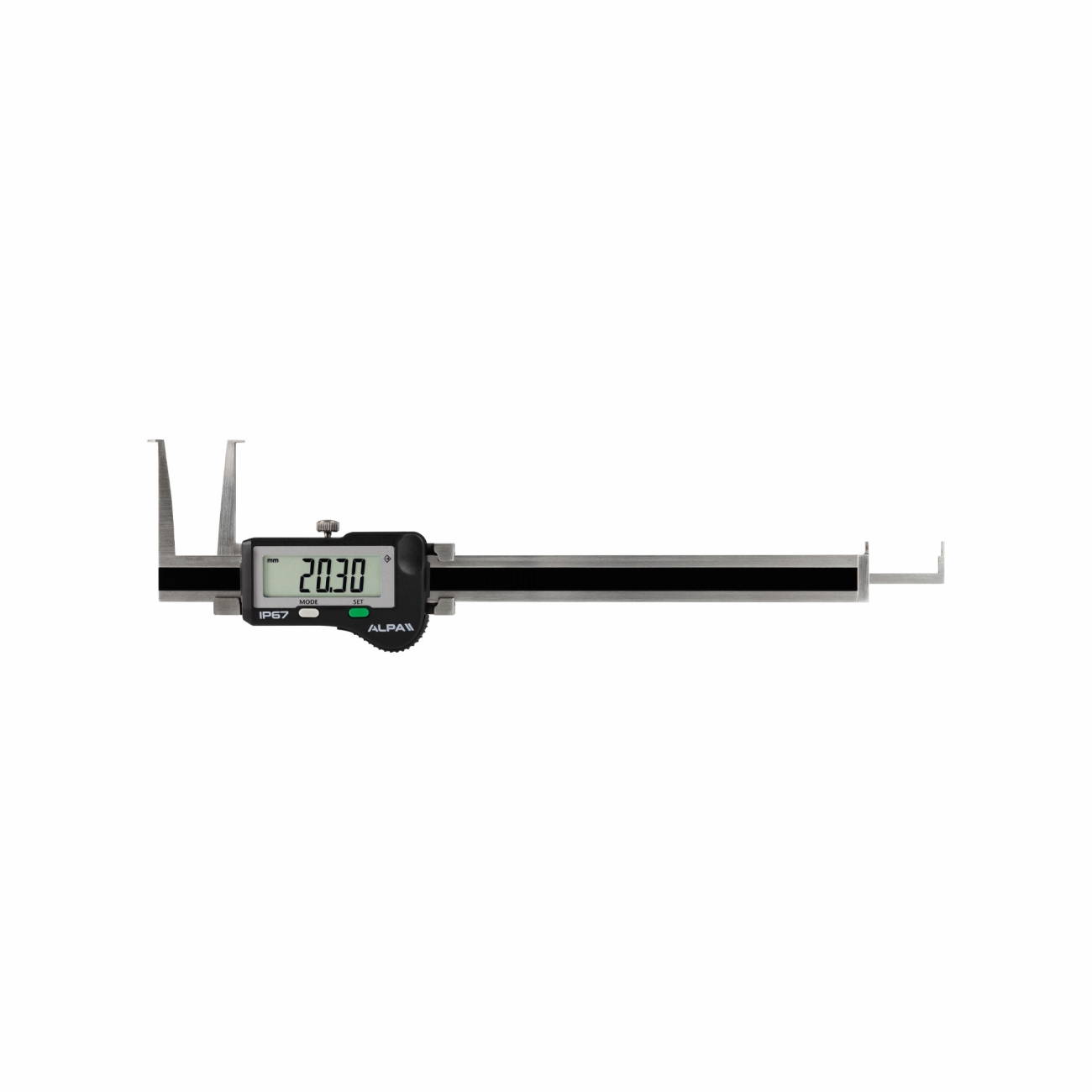

Digital slide caliper for measuring grooves and channels IP67 ALPA MEGALINE AA086
IP67 Preset digital caliper for internal and seeger groves.

Digital slide caliper for measuring grooves and channels IP67 ALPA MEGALINE AA086

Category: SKU: AA086
Characteristics
  • Accuracy ± 0.03 mm
  • Resolution 0.01 mm
  • IP67 protection
  • High degree of protection against dust and liquids
  • Hardened stainless steel structure
  • Slider with locking screw
  • Data output
  • Ergonomic design for ease of use
Request information
Description
  • LCD Display
  • SIS: Sylvac inductive system (patented)
  • mm/inch conversion
  • Inspection report with declaration of conformity
  • Supplied with wooden case
    • Properties

    • : Zero

    Download the manual

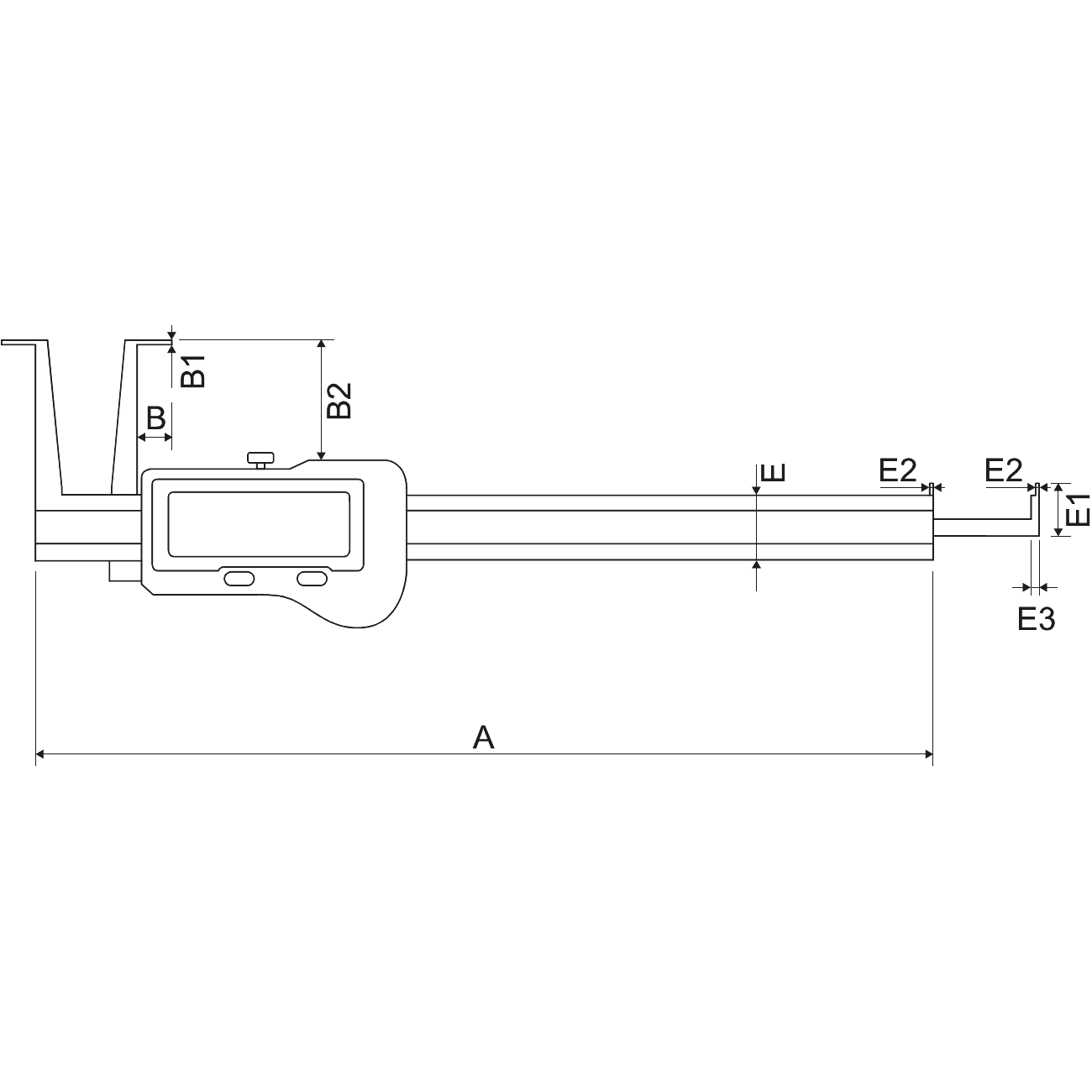

    Drawings
    Variations
    Code
    Range mm
    A mm
    B mm
    B1 mm
    B2 mm
    E mm
    E1 mm
    E2 mm
    E3 mm
    Weight g
    AA086170
    Range mm
    10 ÷ 170
    A mm
    230
    B mm
    3,5
    B1 mm
    0,95
    B2 mm
    32
    E mm
    16,5 x 4
    E1 mm
    15
    E2 mm
    1
    E3 mm
    2
    Weight g
    195
    AA086180
    Range mm
    20 ÷ 180
    A mm
    230
    B mm
    8,5
    B1 mm
    0,95
    B2 mm
    32
    E mm
    16,5 x 4
    E1 mm
    15
    E2 mm
    1
    E3 mm
    2
    Weight g
    200
