CNC 3D measuring machine ALPA LA138

Category: SKU: LA138
Characteristics

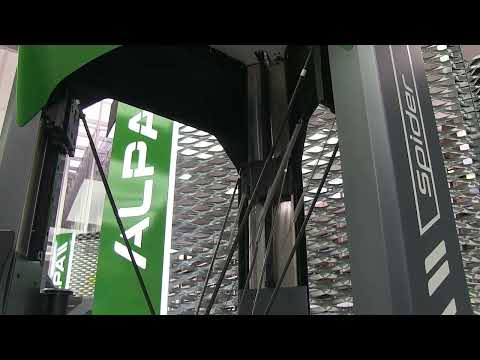

  • Their special structure and delta movement means that the ALPA SPIDER 370 and 520 measuring machines can offer maximum performance even in the most extreme production environments. The small footprint, 5-sensor integrated temperature control and compressed air-free operation allow the ALPA SPIDER 370 and 520 machines to be positioned easily workshops, production lines and automation systems that operate in any type of environment. Accurate and easy to use, they reduce testing times to a minimum to maximise the efficiency of in line measuring operations.
Description
  • Delta movement on sealed recirculating bearings
  • No air pressure required
  • 5 temperature sensors
  • Fast and reliable measurement
  • Easy to use and intuitive Aberlink 3D software
  • Magnetic joystick
  • Steel scales for easy cleaning
  • Possibility of in-line automation
  • Free software update

    ACCESSORIES (on request)

  • Automation interface (connection to the robot)
  • 3-position probe change
  • Dual monitor LA138DM
  • Fixing kit
  • Properties

    • Volumetric accuracy μm*: (2.6 + 0.4 L/100)
    • Scale resolution: 0.1 µm
    • Operational temperature range: 5 - 45 °C
    • Top: Granito
    • Max drive speed: 500 mm/sec
    • Acceleration: 750 mm/sec²
    • Compressed air: None
    • Load capacity: 200 kg
    • Drive: Brushless motors and linear bearings

    Drawings
    Variations
    Code
    Dimension X - Y - Z (H) mm
    Axis travel mm
    LA138370
    Dimension X - Y - Z (H) mm
    715 x 730 x 2000
    Axis travel mm
    XY 370 Ø - Z 270
    LA138520
    Dimension X - Y - Z (H) mm
    950 x 990 x 2200
    Axis travel mm
    XY 520 Ø - Z 300
