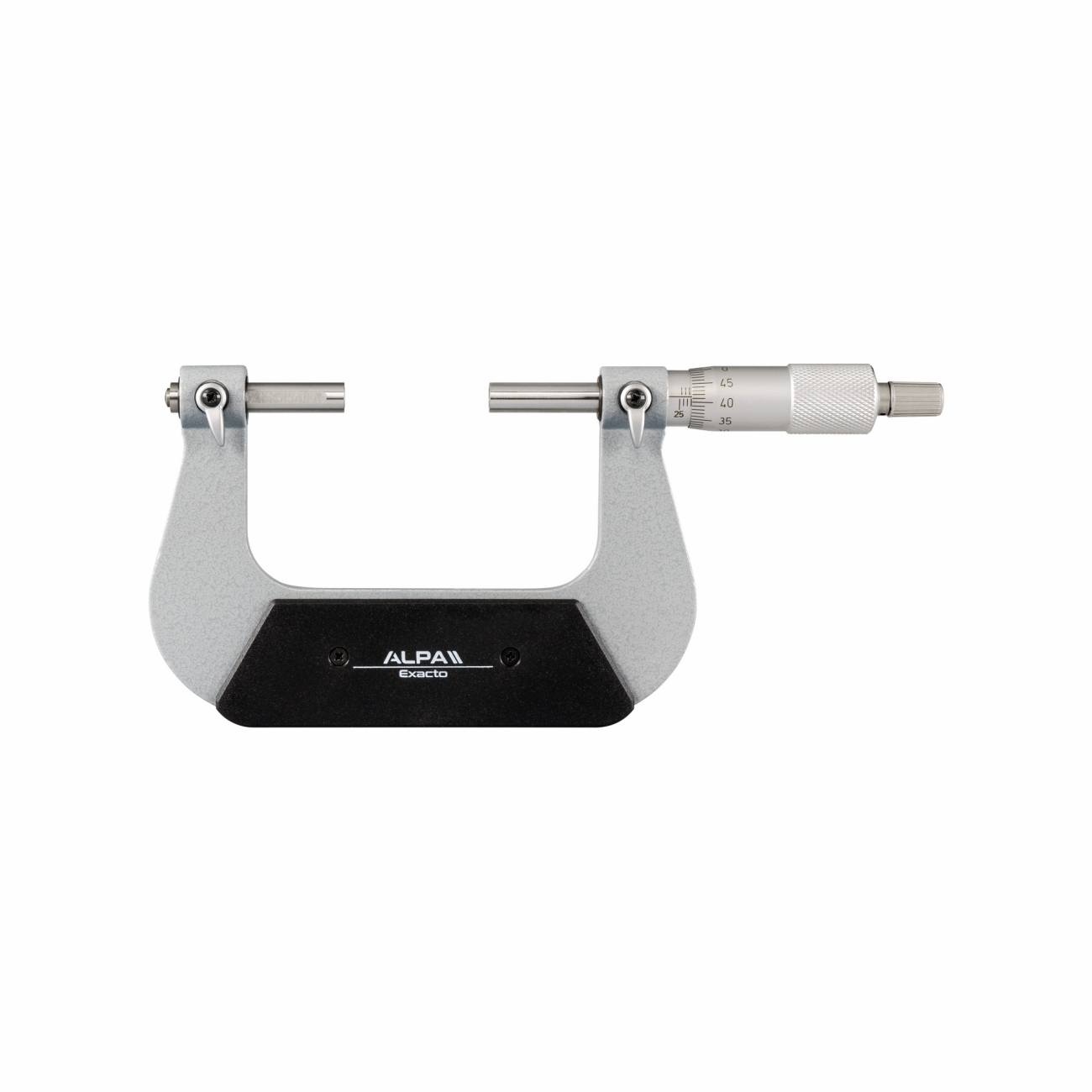

Micrometer with interchangeable ball contacts ALPA BB100
Characteristics- Resolution 0,01 mm.
Micrometer with ball-tipped measuring faces supplied separately (BC023) to measure straight and tapered external gears.
Drawings
Variations
Code
Range mm
Accuracy mm
B1 mm
C mm
BB10025
Range mm
0 ÷ 25
Accuracy mm
± 0,004
B1 mm
84
C mm
38
BB10050
Range mm
25 ÷ 50
Accuracy mm
± 0,004
B1 mm
109
C mm
50
BB10075
Range mm
50 ÷ 75
Accuracy mm
± 0,005
B1 mm
135
C mm
62
BB100100
Range mm
75 ÷ 100
Accuracy mm
± 0,005
B1 mm
160
C mm
70
