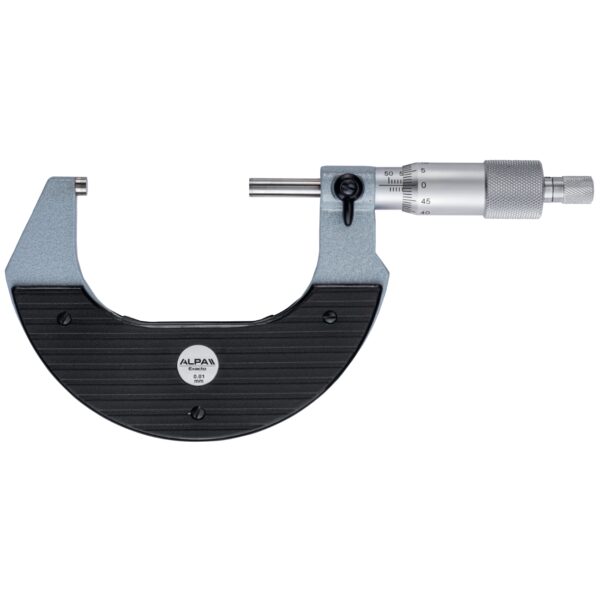

Micrometer for external measurements ALPA BB002
Characteristics- Resolution 0,01 mm.
Matt-chrome finish graduated feeding unit assay, sensitive friction, heat-insulating frame cover. Painted frame. HM contact surfaces.
Description
– HM contact surfaces
– Spindle ø 6.5 mm
– Resolution 0.01 mm
Drawings
Variations
Code
Range mm
Accuracy mm
A mm
B mm
B1 mm
B2 mm
C mm
E mm
Ø mm
BB002025
Range mm
0 ÷ 25
Accuracy mm
± 0,004
A mm
61
B mm
7,1
B1 mm
32,5
B2 mm
47,5
C mm
25,5
E mm
135
Ø mm
65
BB002050
Range mm
25 ÷ 50
Accuracy mm
± 0,004
A mm
75
B mm
7,1
B1 mm
57,5
B2 mm
47,5
C mm
30,5
E mm
162
Ø mm
65
BB002075
Range mm
50 ÷ 75
Accuracy mm
± 0,005
A mm
95
B mm
8
B1 mm
83
B2 mm
47,5
C mm
4,5
E mm
195
Ø mm
65
BB002100
Range mm
75 ÷ 100
Accuracy mm
± 0,005
A mm
112
B mm
8
B1 mm
108
B2 mm
47,5
C mm
58
E mm
220
Ø mm
65
BB002125
Range mm
100 ÷ 125
Accuracy mm
± 0,006
A mm
128
B mm
8
B1 mm
133
B2 mm
47,5
C mm
67,5
E mm
245
Ø mm
65
BB002150
Range mm
125 ÷ 150
Accuracy mm
± 0,006
A mm
140
B mm
8
B1 mm
158
B2 mm
47,5
C mm
82
E mm
270
Ø mm
65
BB002175
Range mm
150 ÷ 175
Accuracy mm
± 0,007
A mm
160
B mm
8
B1 mm
183
B2 mm
47,5
C mm
93
E mm
300
Ø mm
65
BB002200
Range mm
175 ÷ 200
Accuracy mm
± 0,007
A mm
190
B mm
8
B1 mm
208
B2 mm
47,5
C mm
108
E mm
320
Ø mm
65
