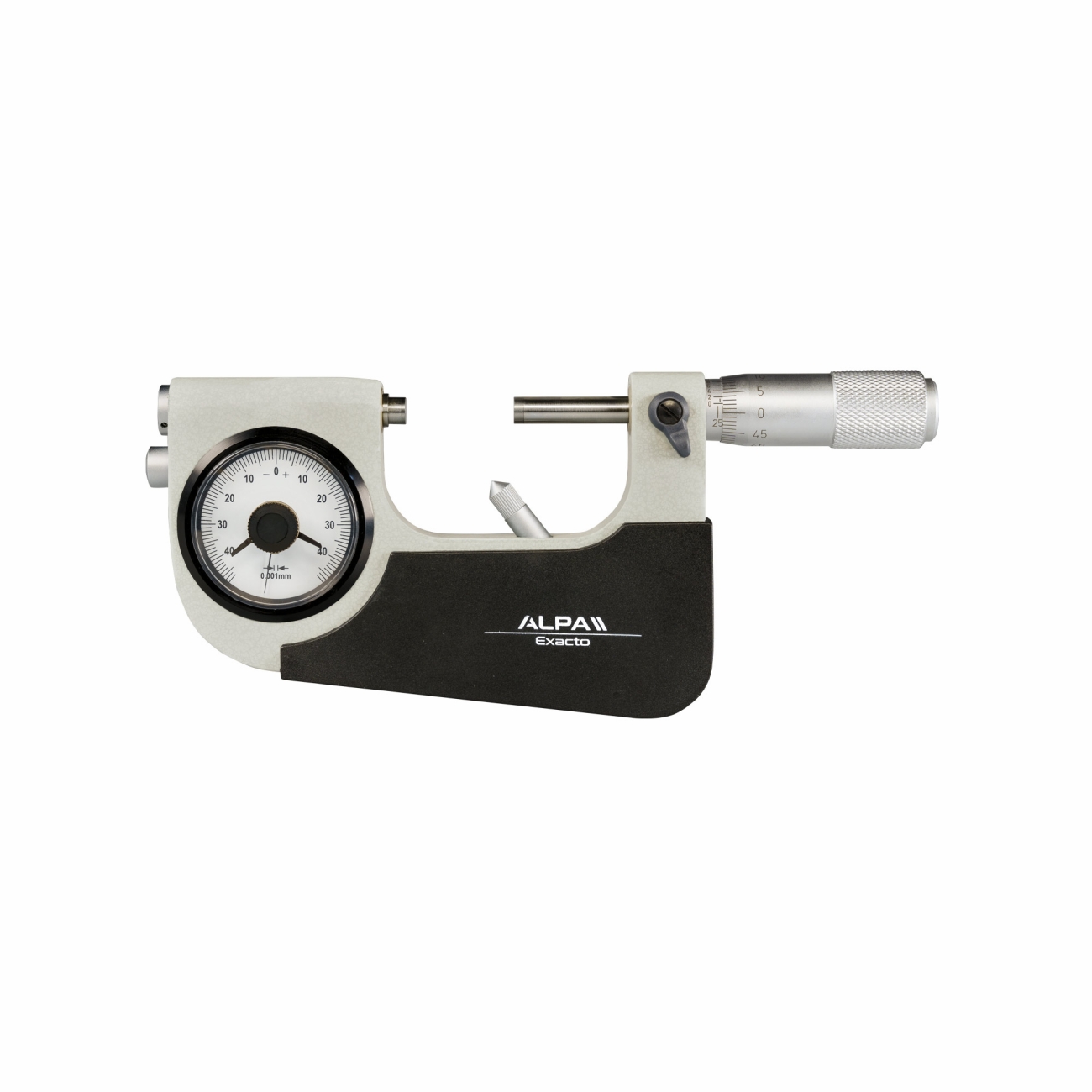

Indicator snap micrometer ALPA BB040
Characteristics- Resolution 0,001 mm.
Retractable anvil with indicator for precision measurement of mass-produced parts. Painted frame. HM contact surfaces.
Description
– HM contact surfaces
– Spindle ø 6.5 mm
– Resolution 0.001 mm
Drawings
Variations
Code
Range mm
Accuracy mm
A mm
B mm
B1 mm
C mm
Ø mm
BB04025
Range mm
0 ÷ 25
Accuracy mm
± 0,003
A mm
285
B mm
43
B1 mm
36,5
C mm
19
Ø mm
65
BB04050
Range mm
25 ÷ 50
Accuracy mm
± 0,003
A mm
53,5
B mm
43
B1 mm
36,5
C mm
30
Ø mm
65
BB04075
Range mm
50 ÷ 75
Accuracy mm
± 0,004
A mm
78,5
B mm
43
B1 mm
36,5
C mm
4,5
Ø mm
65
BB040100
Range mm
75 ÷ 100
Accuracy mm
± 0,004
A mm
103,5
B mm
43
B1 mm
36,5
C mm
57
Ø mm
65
