Dial gauge holder stand with granite base ALPA CD040

Dial gauge holder stand with granite base ALPA CD040

Category: SKU: CD040
Characteristics
  • DIN 876/00 compliant flatness and accuracy, sturdy, highly stable structure, hardened and grinded stainless steel stand column and fine lapped surface, Ø 8 mm dial gauge coupling. Dial gauge not included.
Request information

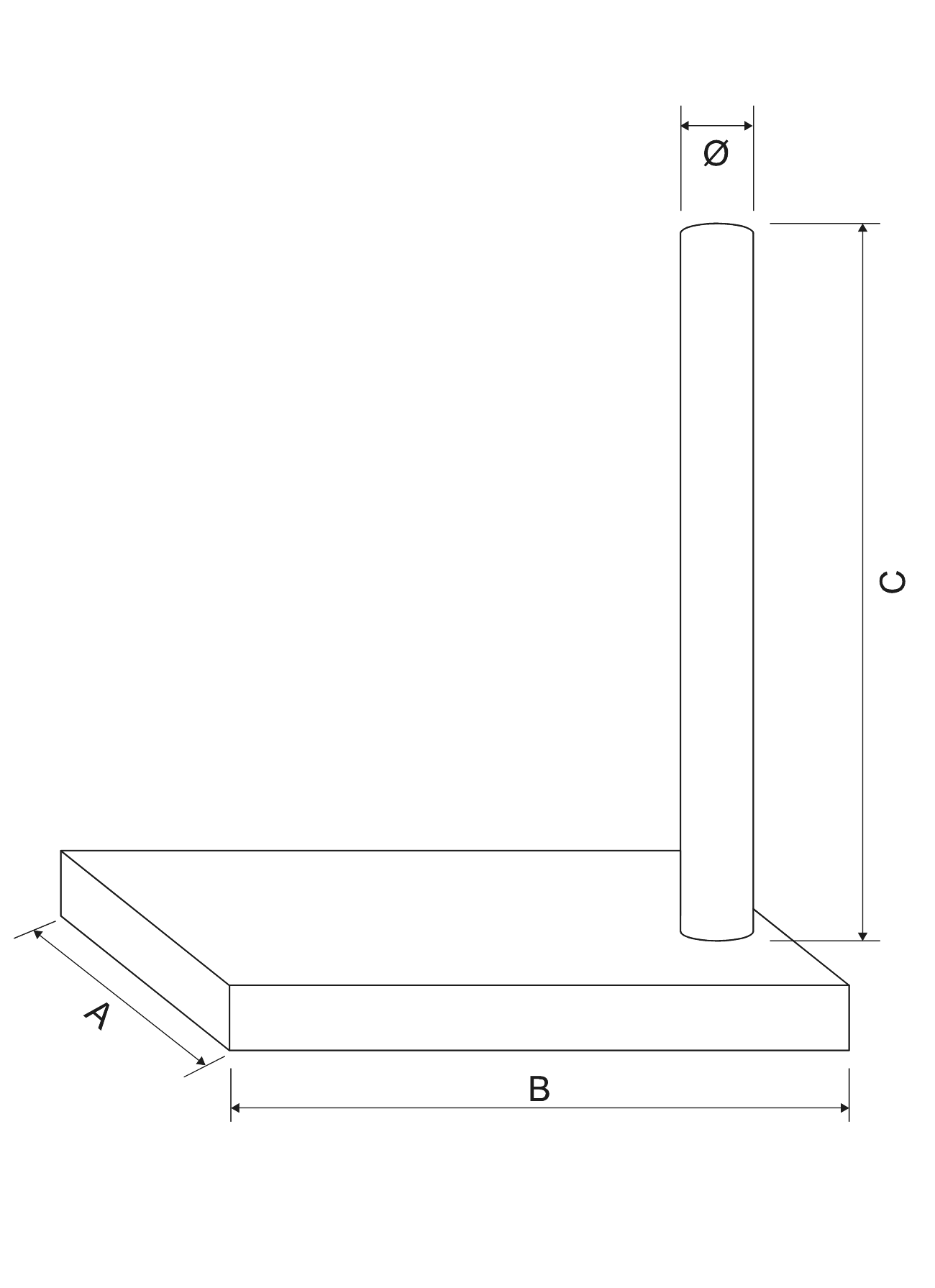

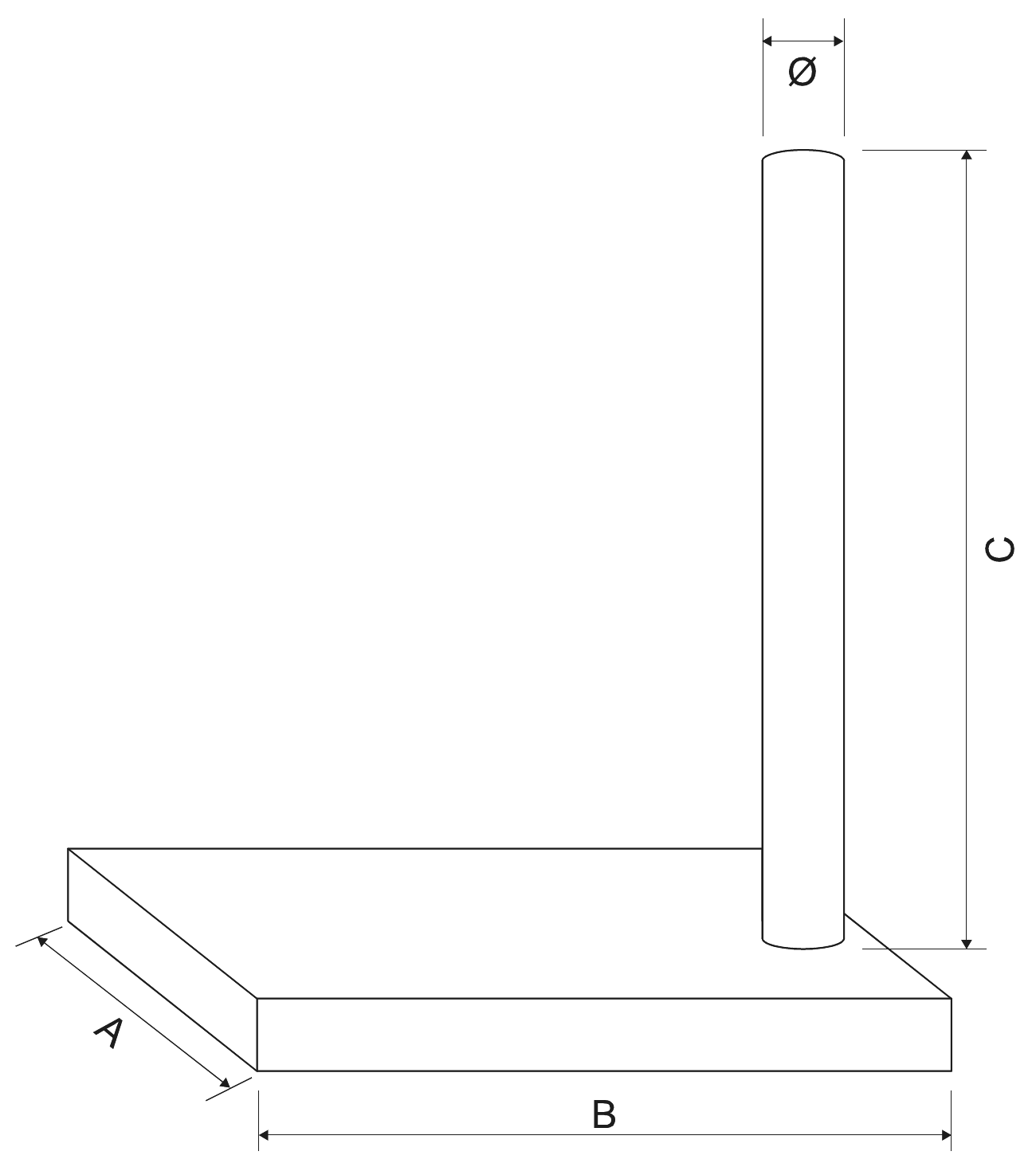

Drawings
Variations
Code
Ø mm
C mm
A mm
B mm
Arm mm
Fine adjustment
CD040B
Ø mm
25
C mm
200
A mm
160
B mm
250
Arm mm
75
Fine adjustment
-
CD040C
Ø mm
30
C mm
300
A mm
200
B mm
300
Arm mm
180
Fine adjustment
CD040D
Ø mm
30
C mm
300
A mm
200
B mm
300
Arm mm
180
Fine adjustment
