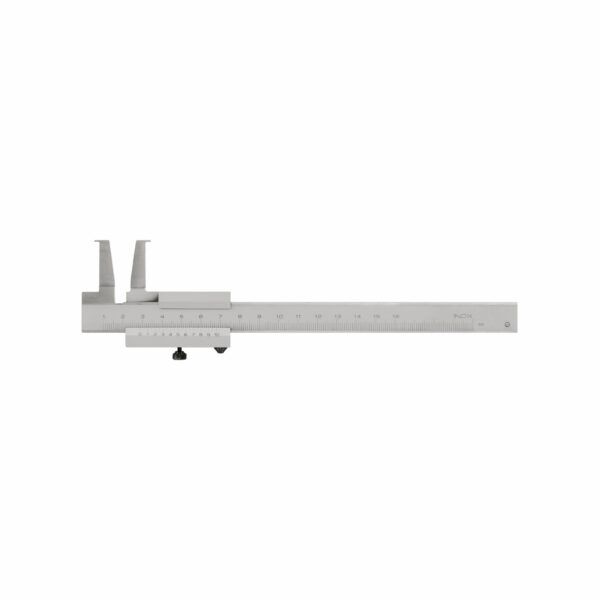

Slide caliper for internal grooves ALPA AB067

Slide caliper for internal grooves ALPA AB067

Category: SKU: AB067
Characteristics
  • Accuracy ± 0.04 mm (160)
  • Resolution 0.05 mm
  • Slider with locking screw
  • Matt chrome finish scale
Request information
Description
  • Stainless steel
  • Standard depth rod (flat)
    • Drawings
    Variations
    Code
    Range mm
    A mm
    B mm
    B1 mm
    B2 mm
    E mm
    Weight g
    AB067160
    Range mm
    9,5 ÷ 160
    A mm
    22,5
    B mm
    3
    B1 mm
    0,9
    B2 mm
    2,5
    E mm
    15,8
    Weight g
    190
    AB067200
    Range mm
    26 ÷ 200
    A mm
    285
    B mm
    7
    B1 mm
    3
    B2 mm
    60
    E mm
    18
    Weight g
    200
    AB067300
    Range mm
    60 ÷ 300
    A mm
    385
    B mm
    10
    B1 mm
    5
    B2 mm
    100
    E mm
    24
    Weight g
    250
